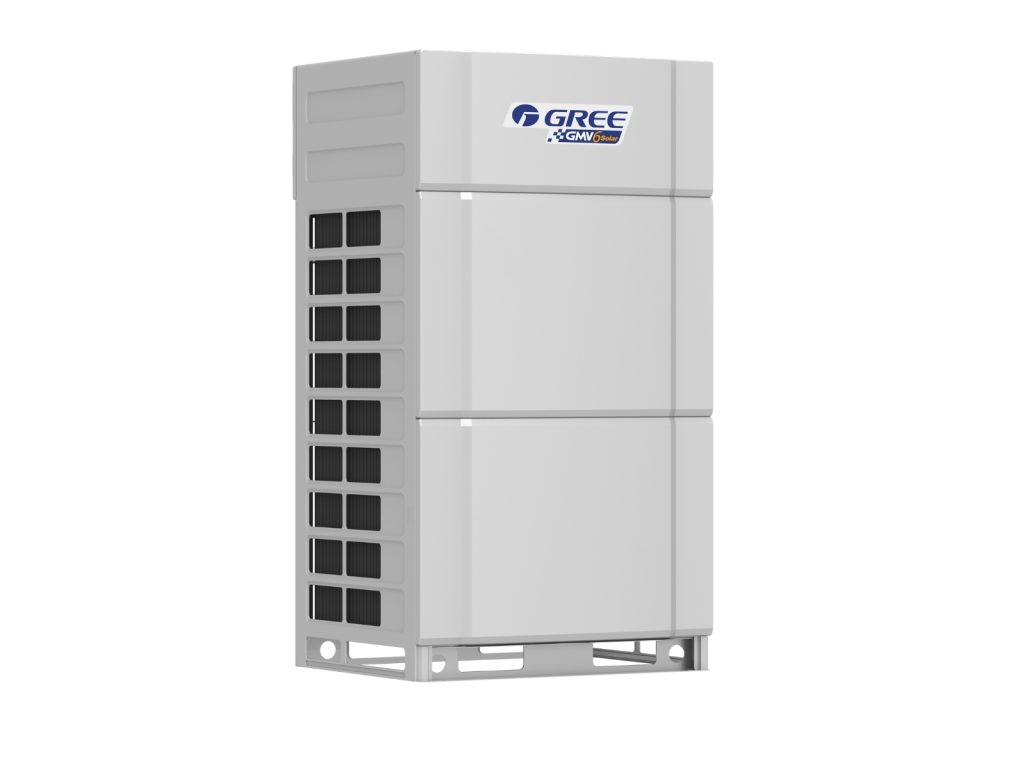

Outdoor VRF Unit: Gree Photovoltaic DC Multi VRF

The Gree Photovoltaic  DC Multi VRF is an intelligent, “new energy” climate solution that integrates solar power generation directly with HVAC operations to target zero carbon emissions and “zero electricity charges”. Utilizing proprietary DC direct-driven technology, the system achieves a solar utilization rate of up to 98% by eliminating energy-wasting conversion stages, while the integrated G-IEMS energy management system intelligently balances power between solar modules, the public grid, and optional battery storage. This system provides building owners and MCSTs a highly efficient path toward energy independence and is best used for green-certified commercial and public infrastructure, such as schools, hospitals, hotels, and office complexes, where sustainability and reducing high operational costs are primary objectives

ModelGMVPVL-T8N1AGMVPVL-T10N1AGMVPVL-T12N1AGMVPVL-T14N1AGMVPVL-T16N1A
Cooling CapacitykW22.27.933.340.045.0
Cooling Capacitybtu/h7600095000114000136000154000
Power Supply 380-415 V 3N ~50/60 Hz380-415 V 3N ~50/60 Hz380-415 V 3N ~50/60 Hz380-415 V 3N ~50/60 Hz380-415 V 3N ~50/60 Hz
Running Current A9.411.915.716.019.8
Power InputKw5.286.698.779.5811.76
EERbtu/h/W14.4014.2013.0014.2013.10
Unit Dimension
(W × H × D)
mm930 × 775 × 1690930 × 775 × 1690930 × 775 × 16901340 × 775 × 16901340 × 775 × 1690
Net Weightkg265265270330230 | 240
Sound Pressure Level dB(A)5859605960
Connection Pipe Diameter (⌀)Liquid3/8" (9.52mm) 3/8" (9.52mm) 1/2" (12.7mm)1/2" (12.7mm) 1/2" (12.7mm)
Connection Pipe Diameter (⌀)Gas 3/4" (19.05mm)7/8" (22.2mm)1" (25.4mm)1" (25.4mm)1 ¹/₈" (28.6mm)
No. of Connectable Indoor Units
(System)
Units1316192326

Supported Indoor Units

Gree Commercial Indoor Unit: Wall Mount

Wall Mounted Indoor Unit

Ideal for offices, retail spaces, and smaller commercial spaces

Gree Commercial HVAC Unit: Duct Type

Duct Indoor Unit

Flexible and powerful cooling for larger spaces

Gree Commercial Indoor Unit 360 Degree Air Discharge Compact Ceiling Cassette

360 Degree Cassette

360 degree airflow for consistent comfort in large spaces

Gree Commercial HVAC Unit: One Way Cassette

Indoor Cassette Unit

Compact design for corridors and smaller rooms.

Gree Commercial Indoor Unit: Floor Standing Type Indoor Unit

Floor Standing Unit

High-capacity climate control for large commercial and open-plan spaces

Gree Commercial Indoor Unit: Concealed Floor Standing Unit

Concealed Floor Standing Unit

Concealed low-wall cooling that stays out of sight

Gree Commercial Indoor Unit: Console Indoor Unit

Console Type Indoor Unit

Low-wall or floor installation for spaces without a false ceiling

Gree Commercial Indoor Unit: Floor Ceiling Indoor Unit

Floor Ceiling Unit

Versatile heating and cooling for spaces with no drop ceiling or little wall area.

Features

Seamlessly switches between 5 operational modes (PV power generation, PV air conditioning + power generation, PV air conditioning, hybrid grid power supply, and standard grid air conditioning) with a switching delay of less than 10 ms to prevent power waste.

Operates on a self-adaptive grid system with a 0.99 power factor and total harmonic distortion under 1.5%. It uses low-voltage DC components for enhanced safety and replaces electrolytic capacitors with long-life, non-polar membrane capacitors to extend hardware longevity

Cancels the zero/neutral wire requirement during wiring setup to eliminate potential phase-sequence errors and virtual zero wire connection issues, significantly cutting installation costs and labour

Connects to the Gree Energy Information Management System (G-IEMS) for real-time monitoring of energy flows, intelligent energy dispatching, status diagnostics, and peak/valley grid power optimization

Easily matches with optional battery storage systems (incorporating BMS and AC/DC conversion) while offering standard plug-and-play photovoltaic module interfaces for quick assembly

Photovoltaic (Storage) DC Multi VRF- Superior Energy Efficiency

Superior Energy Efficiency

  • Direct-Driven DC Technology (98% Utilization Rate): Feeds solar DC power directly into the air conditioner, eliminating multiple AC/DC conversion steps to increase system efficiency by over 8%.
  • Dynamic MPPT Load Tracking: Real-time maximum power point tracking continuously optimizes solar energy utilization based on changing light conditions.
  • Fast Multimode Commutation (<10 ms): Rapidly switches between 5 working modes in under 10 ms to prevent power loss and optimize solar power distribution.
  • Matched Generation & Load Profile: Direct alignment between solar generation intensity and summer air conditioning load maximizes self-consumption and energy self-sufficiency.
Gree Outdoor VRF Unit: Photovolatic (Economic and Financial Benefits)

Economic and Financial Benefits

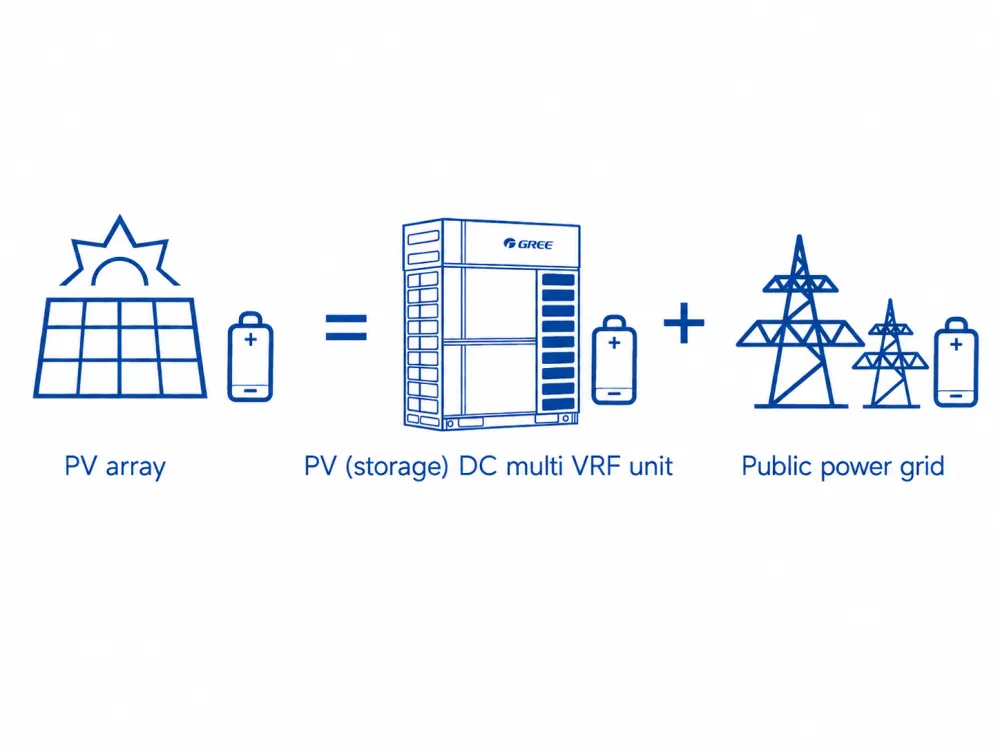

  • Surplus Power Feed-In & Revenue Generation: Connects excess solar energy back to the public power grid or local appliances in real time when cooling demand is low.
  • Peak-to-Valley Energy Arbitrage: Reduces reliance on expensive grid power during peak tariff hours, lowering overall electricity bills.

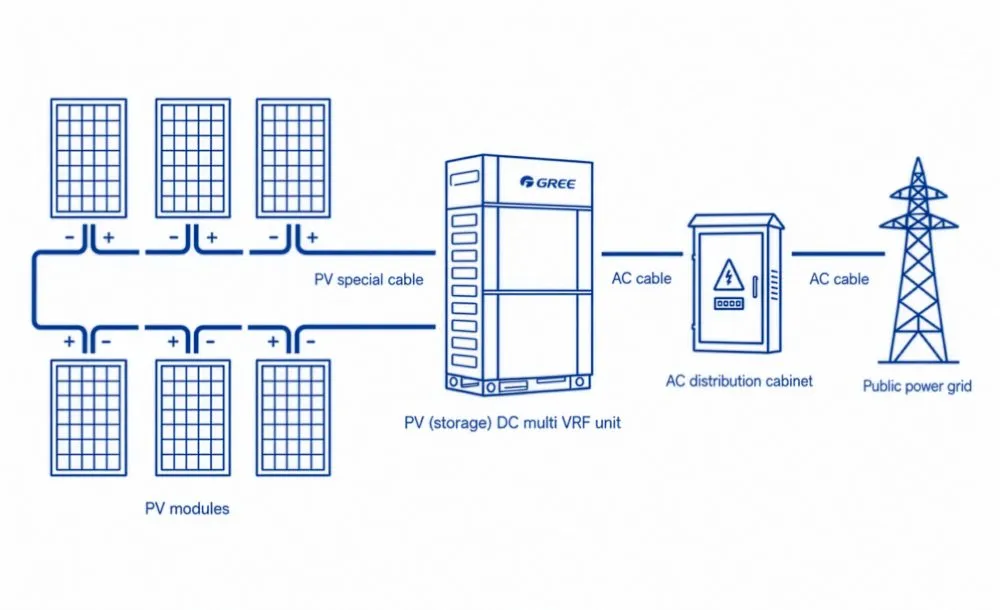

  • Lower Upfront Installation & Material Costs: Eliminates combiner boxes, extra converters, and zero/neutral wire runs, significantly cutting initial labor and hardware expenses.
  • G-IEMS Intelligent Energy Dispatch: Real-time tracking of energy flows and power-level dispatching optimizes total operational expenses across the system
Photovoltaic (Storage) DC Multi VRF- Simplified Engineering and InstallationPhotovoltaic (Storage) DC Multi VRF- Enhance Reliable and Safety

Enhanced Reliability and Safety

  • Low-Voltage DC Circuit Design: Operates on low-voltage DC components to eliminate arcing and fire hazards, ensuring safe operation and maintenance.

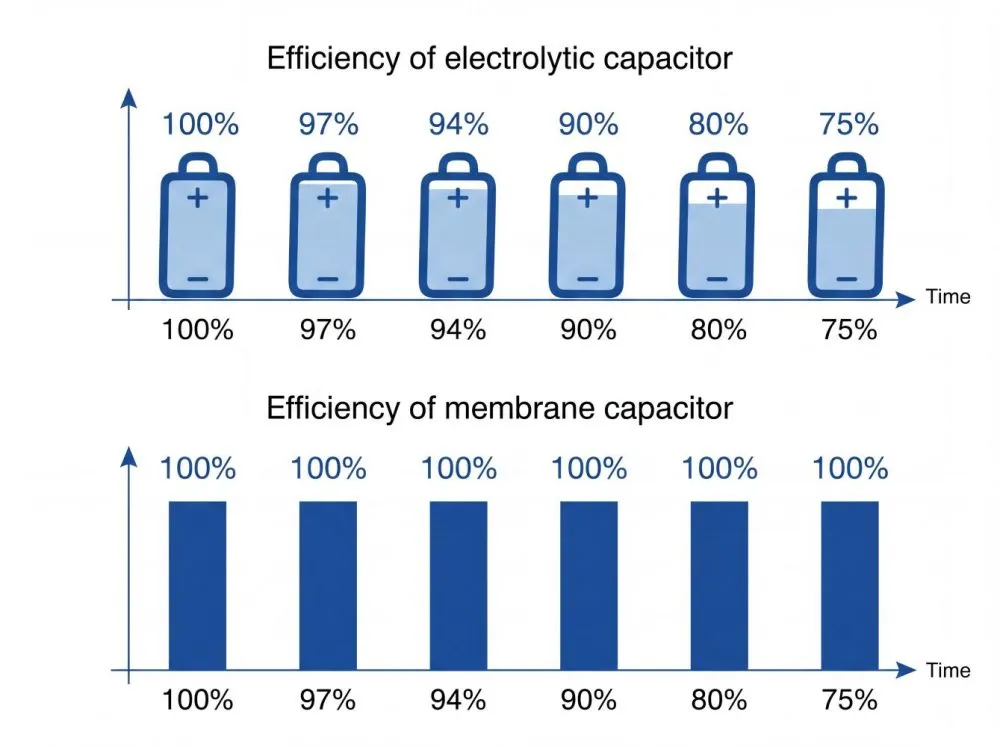

  • Long-Life Non-Polar Film Capacitors: Replaces conventional electrolytic capacitors with durable membrane capacitors to extend the operating lifespan of the system.
  • Zero Neutral Wire Architecture: Cancels neutral wire connection requirements to eliminate phase-sequence errors and virtual zero wire faults during installation.
  • Grid-Friendly Adaptive Inverter (0.99 Power Factor): Operates with a 0.99 power factor and total harmonic distortion under 1.5%, preventing grid interference and maintaining system stability.
