Outdoor VRF Unit: GMV

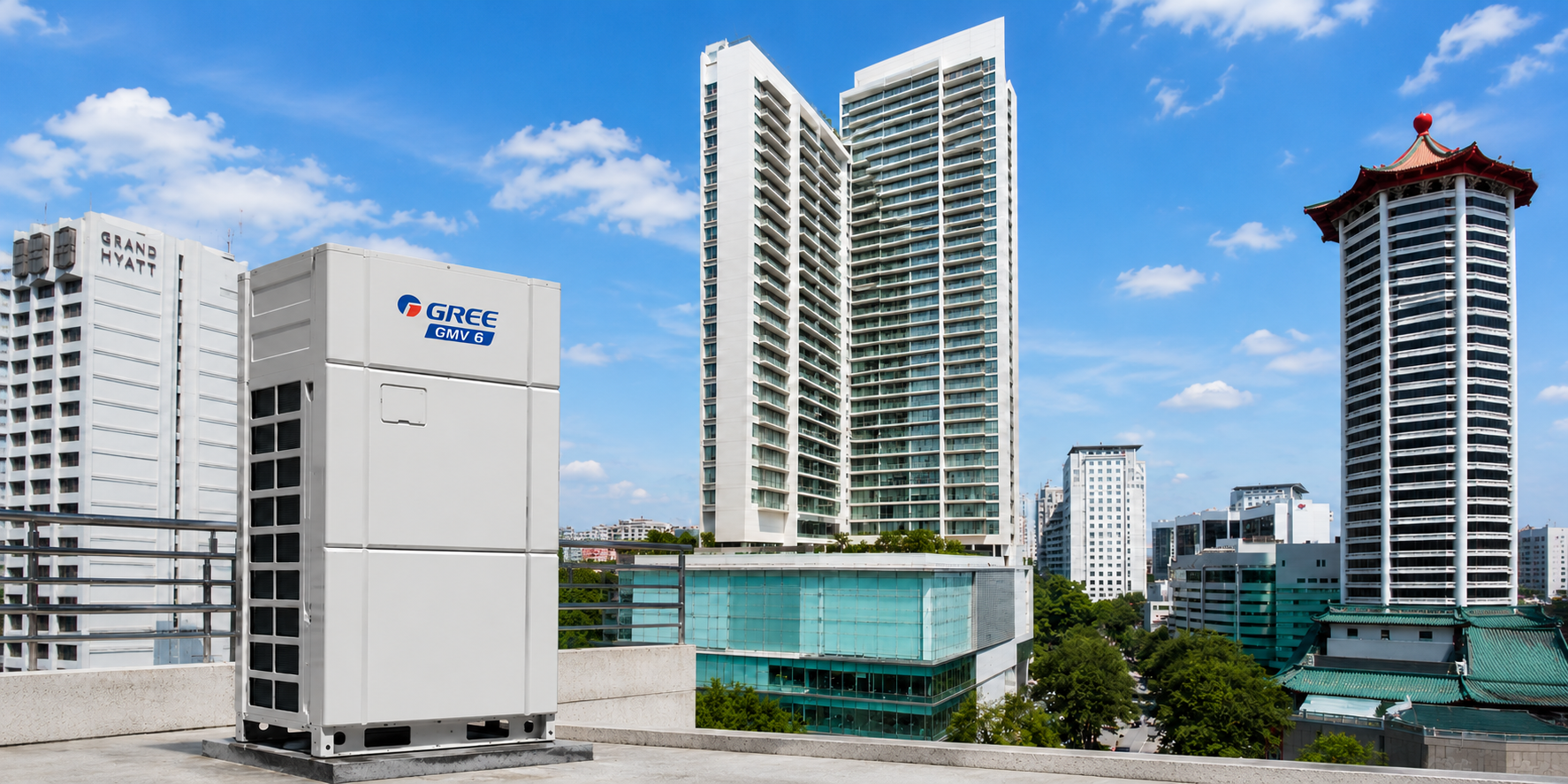

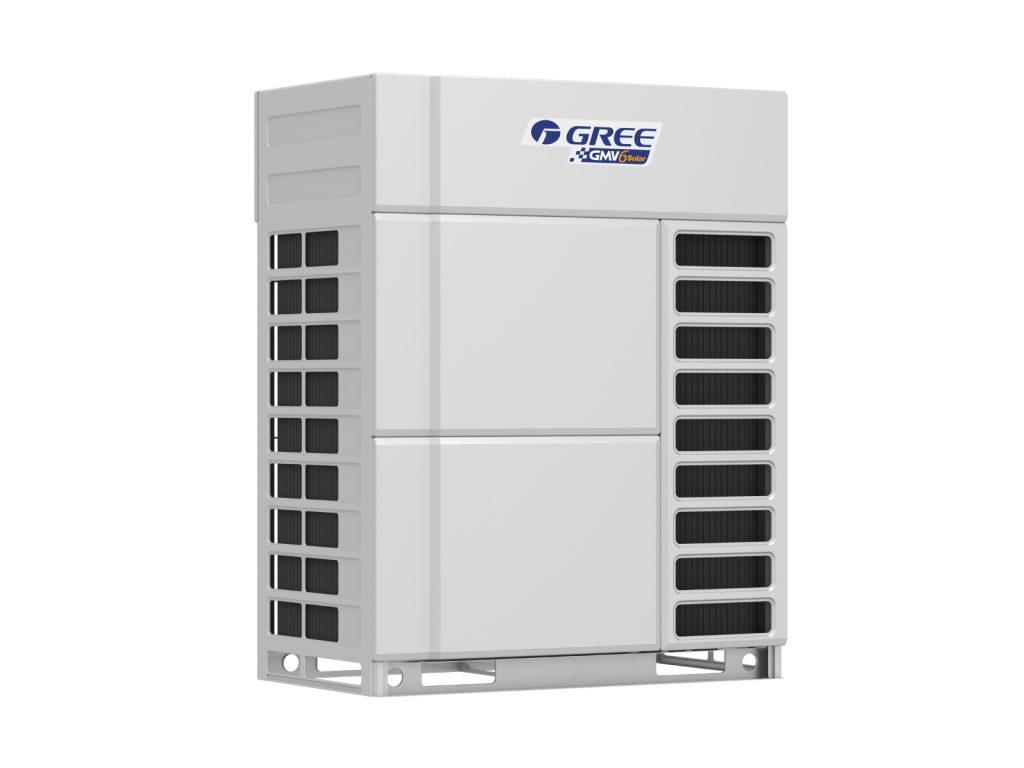

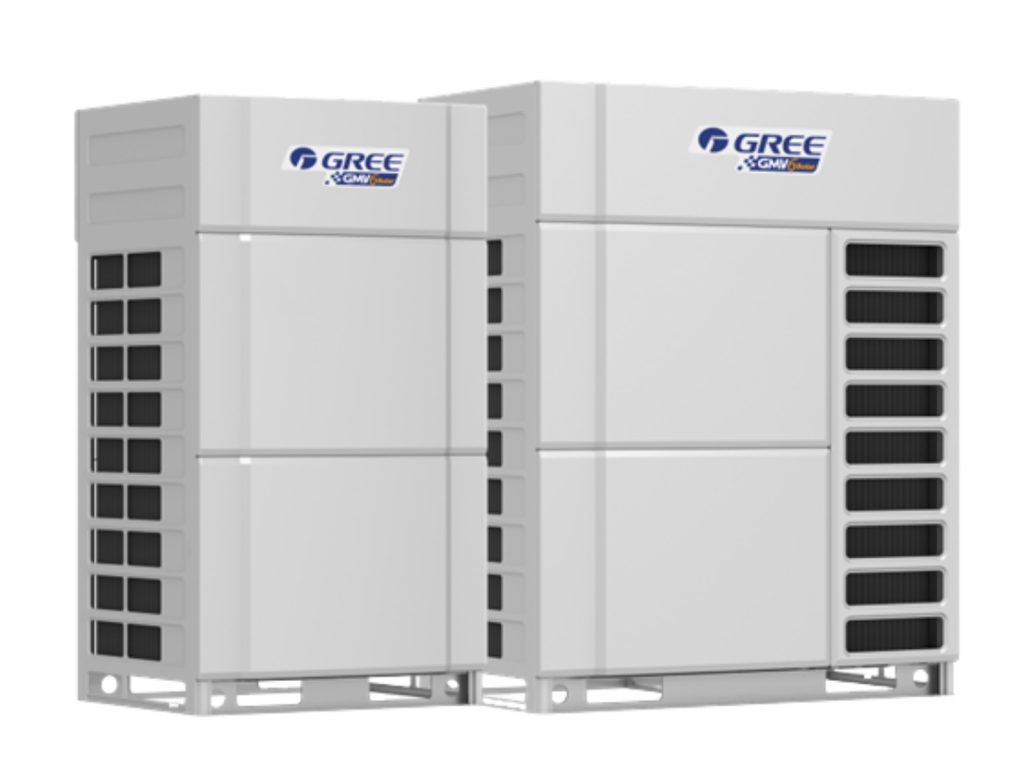

GMV- High Capacity Outdoor VRF Inverter Unit

The Gree GMV (Variable Refrigerant Flow) is a high-capacity, modular technological platform engineered for large-scale commercial and industrial infrastructure. Utilizing advanced EVI scroll compressor technology and DC inverter motors, the system ensures high-efficiency performance even in extreme ambient temperatures ranging from -15°C to 55°C.
Key features for building owners and MCSTs include:

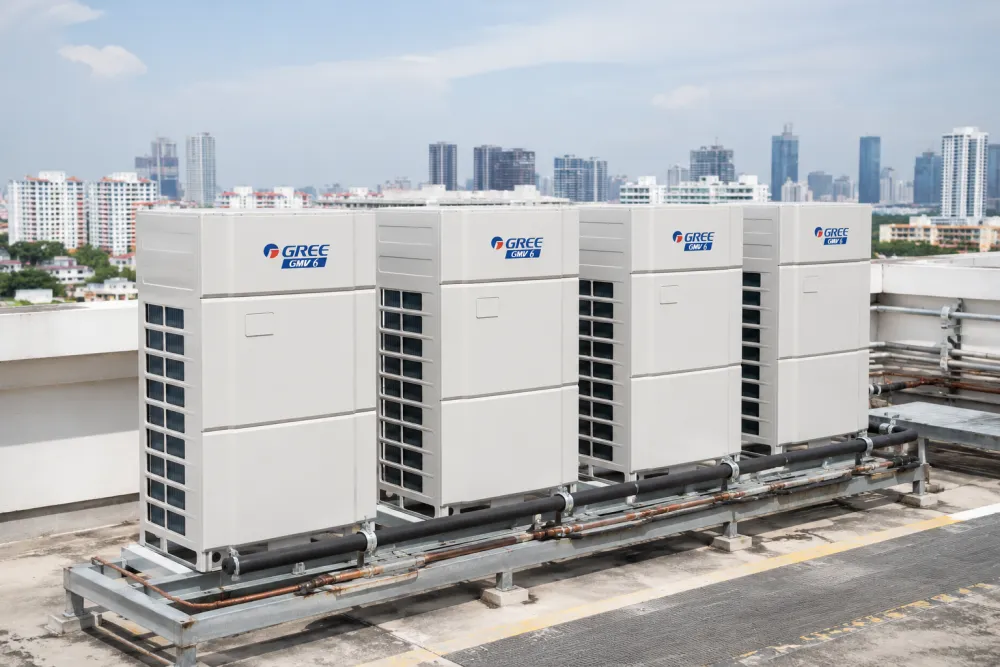

  • Modular Scalability: Basic units (8HP, 10HP, 12HP) can be combined to reach a massive maximum capacity of 48HP.
  • Advanced Networking: Proprietary CAN+ communication technology provides high resistance to interference and allows for the massive expansion of connectable indoor nodes.
  • Intelligent Management: Includes a sophisticated billing system for fair energy distribution among tenants, as well as remote monitoring through the G-IEMS and cloud-based platforms.

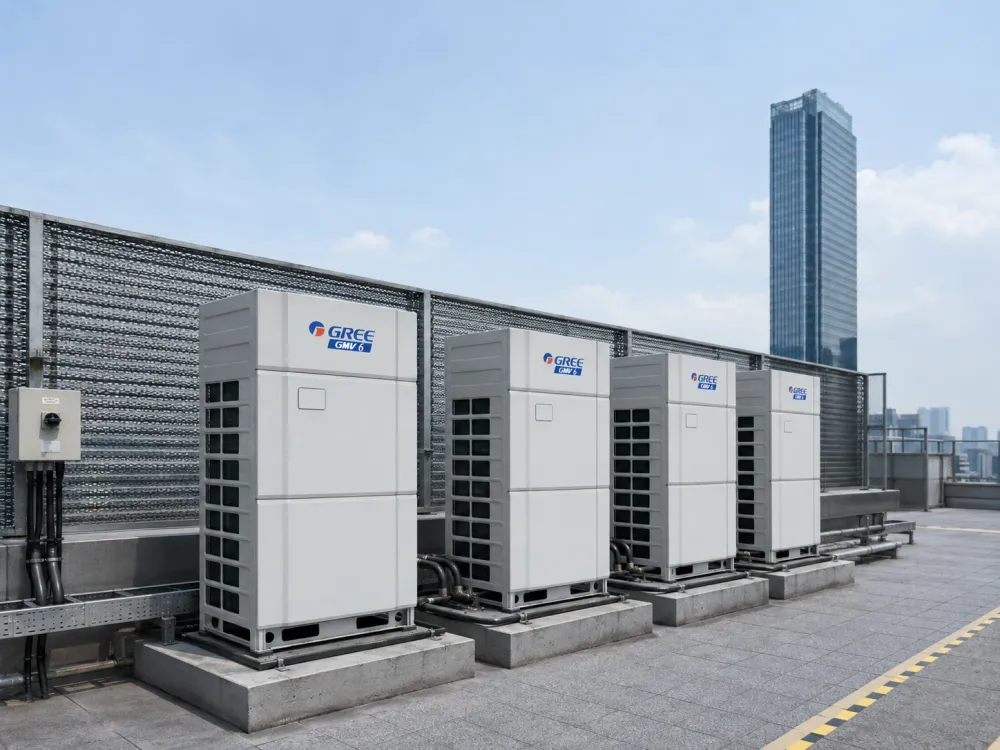

This system is best used for skyscrapers, shopping malls, office buildings, and hotels where reliable, large-capacity cooling and complex facility management are required.
ModelGMVL-T8N1AGMVL-T10N1AGMVL-T12N1A
Cooling Capacity
Rated (Min-Max)
kW22.428.033.5
Power Supply 380-415 V 3N ~50/60 Hz380-415 V 3N ~50/60 Hz380-415 V 3N ~50/60 Hz
Running Current A10.512.214.3
Power InputKw4.405.907.80
Unit Dimension
(W × H × D)
mm940 × 775 × 1690940 × 775 × 1690940 × 775 × 1690
Net Weight | Gross Weightkg225 | 235225 | 235230 | 240
Sound Pressure Level dB(A)565759
Connection Pipe Diameter (⌀)Liquid3/8" (9.52mm) 3/8" (9.52mm) 1/2" (12.7mm)
Connection Pipe Diameter (⌀)Gas 3/4" (19.05mm)7/8" (22.2mm)1" (25.4mm)
No. of Connectable Indoor Units
(System)
Units131619

Supported Indoor Units

Gree Commercial Indoor Unit: Wall Mount

Wall Mounted Indoor Unit

Ideal for offices, retail spaces, and smaller commercial spaces

Gree Commercial HVAC Unit: Duct Type

Duct Indoor Unit

Flexible and powerful cooling for larger spaces

Gree Commercial Indoor Unit 360 Degree Air Discharge Compact Ceiling Cassette

360 Degree Cassette

360 degree airflow for consistent comfort in large spaces

Gree Commercial HVAC Unit: One Way Cassette

Indoor Cassette Unit

Compact design for corridors and smaller rooms.

Gree Commercial Indoor Unit: Floor Standing Type Indoor Unit

Floor Standing Unit

High-capacity climate control for large commercial and open-plan spaces

Gree Commercial Indoor Unit: Concealed Floor Standing Unit

Concealed Floor Standing Unit

Concealed low-wall cooling that stays out of sight

Gree Commercial Indoor Unit: Console Indoor Unit

Console Type Indoor Unit

Low-wall or floor installation for spaces without a false ceiling

Gree Commercial Indoor Unit: Floor Ceiling Indoor Unit

Floor Ceiling Unit

Versatile heating and cooling for spaces with no drop ceiling or little wall area.

Features

Utilizes an EVI (Enhanced Vapor Injection) scroll-type DC inverter compressor with enthalpy control to optimize partial load energy efficiency and expand operating performance

Features non-polar CAN+ communication technology with automatic address allocation, eliminating DIP switch settings and reducing multi-unit networking response times to under 500 ms

Supports a maximum single pipe length of 200 m (240 m equivalent), a total system piping length up to 1,000 m, and an elevation difference between outdoor and indoor units reaching up to 110 m

Includes Capacity Priority, Auto Energy-Saving, and Compulsory Energy-Saving modes (limiting power consumption up to 20%), paired with SRL self-adaptive control to automatically balance cooling and heating load demands

Combines Reverse-S shape fan blades, compressor sound insulation covers, and 13 customizable quiet modes (including night quiet and mandatory quiet settings) for low-noise operation

Employs an integrated aluminum alloy electric control box cooled directly by system refrigerant, reducing module operating temperatures by about 8°C for enhanced component lifespan

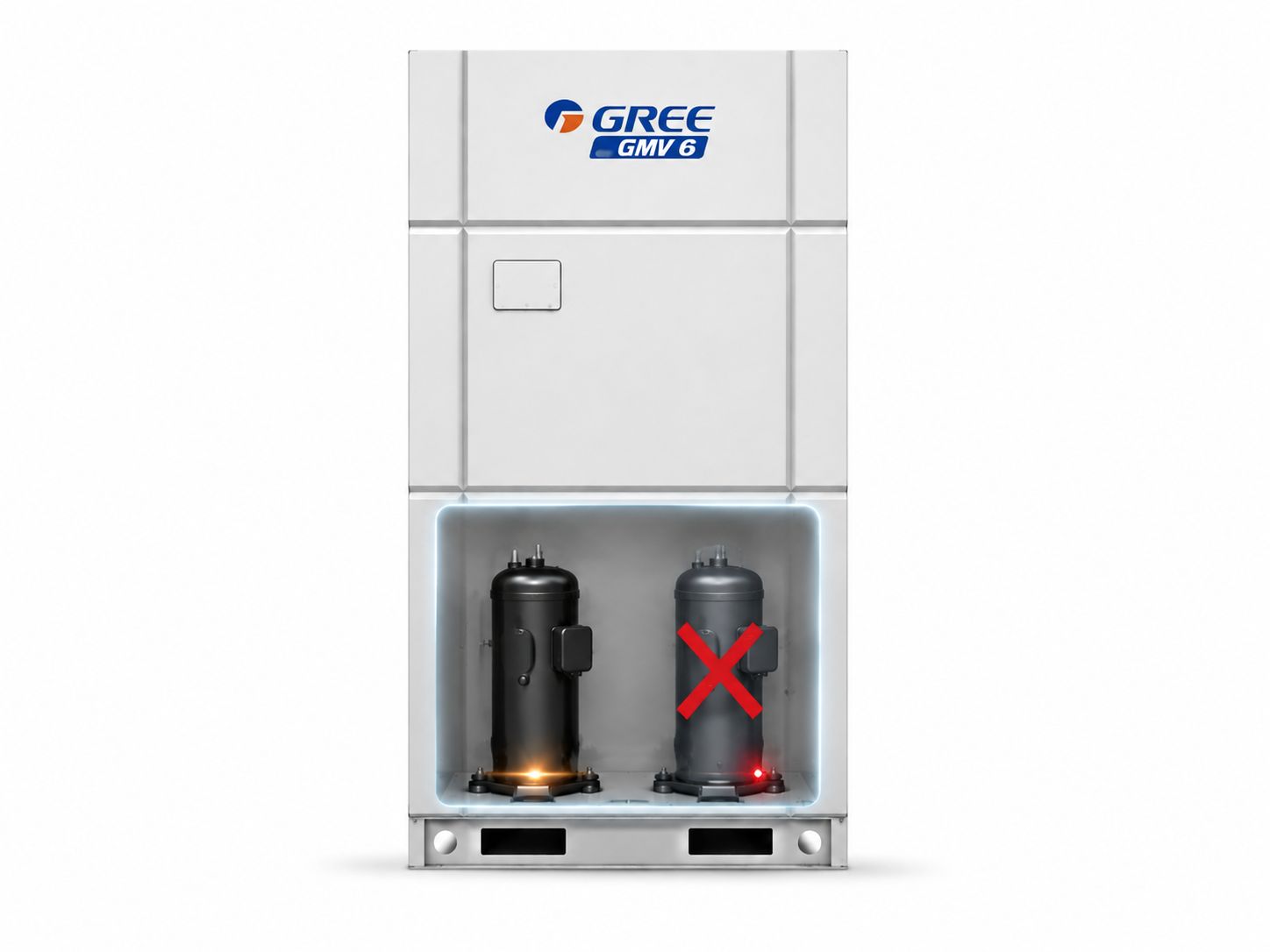

Equipped with auto-clean dust removal, wind prevention braking, lightning anti-surge protection, and multi-level emergency backup operations for fans, compressors, and sensors

Advanced oil balancing algorithm automatically distributes oil between outdoor modules without requiring external oil balancing piping

Operates reliably in extreme climate conditions, maintaining stable cooling performance across outdoor ambient temperatures from -15°C to 55°C

Connects with centralized touch controllers, G-Cloud WiFi app control, key-card hotel linkage modules, tenant billing software, and BACnet/Modbus building automation gateways

Gree Commercial HVAC Outdoor VRF Unit: GMV

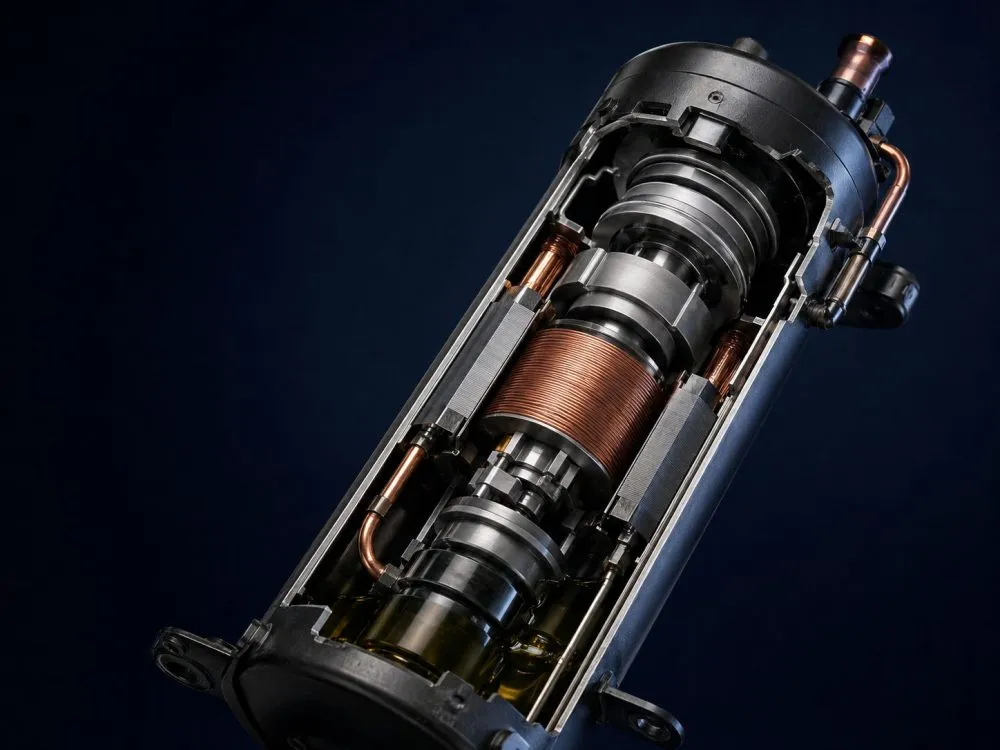

Extreme Efficiency and Performance

  • EVI Compressor Technology: It utilizes high-efficiency Enhanced Vapor Injection (EVI) scroll compressors, which reinforce system capacity and allow for stable operation in extreme ambient temperatures ranging from -15°C to 55°C.
  • Advanced Energy Management: Building owners can utilize multiple energy-saving modes, such as the “Compulsory Energy-saving Mode,” which can limit output to 80% or 90% to help facilities meet city peak power requirements and reduce costs.

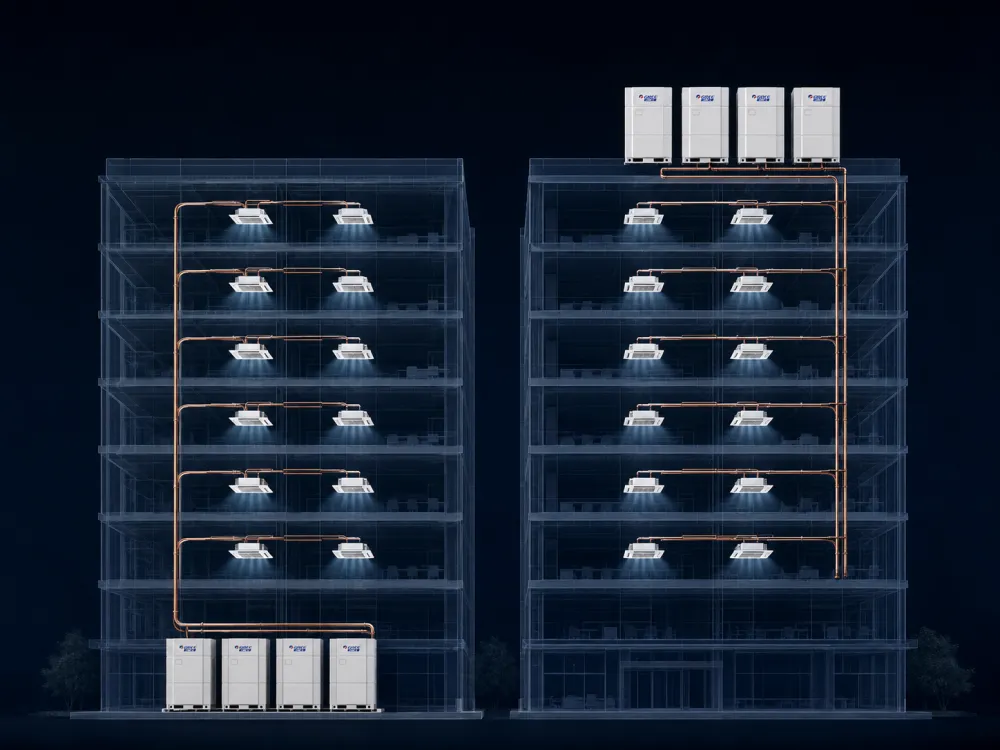

Super-Long Piping & High Elevation Capability

Supports a maximum single pipe length of 200 m (240 m equivalent), a total system piping length up to 1,000 m, and an elevation difference between outdoor and indoor units reaching up to 110 m

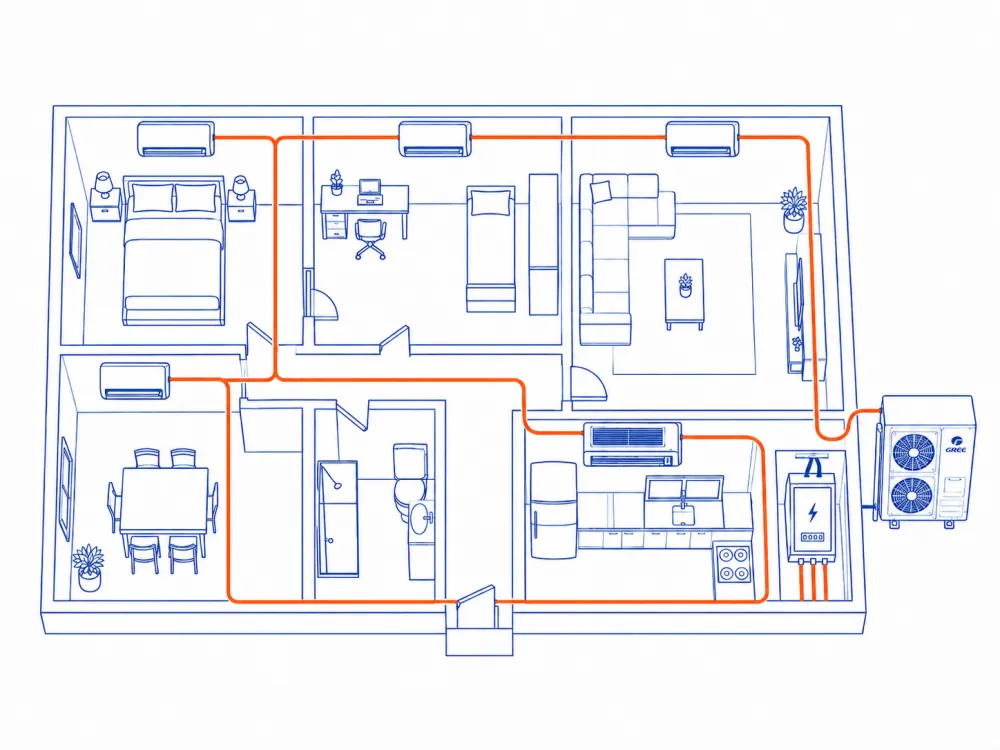

Industry-Leading Communication

  • CAN+ Technology: The system employs the proprietary CAN+ communication protocol, which uses a non-polarity chip for high resistance to electromagnetic interference.
  • Fast Response: This technology offers significantly faster response times (milliseconds) compared to traditional protocols and simplifies commissioning with automatic address allocation

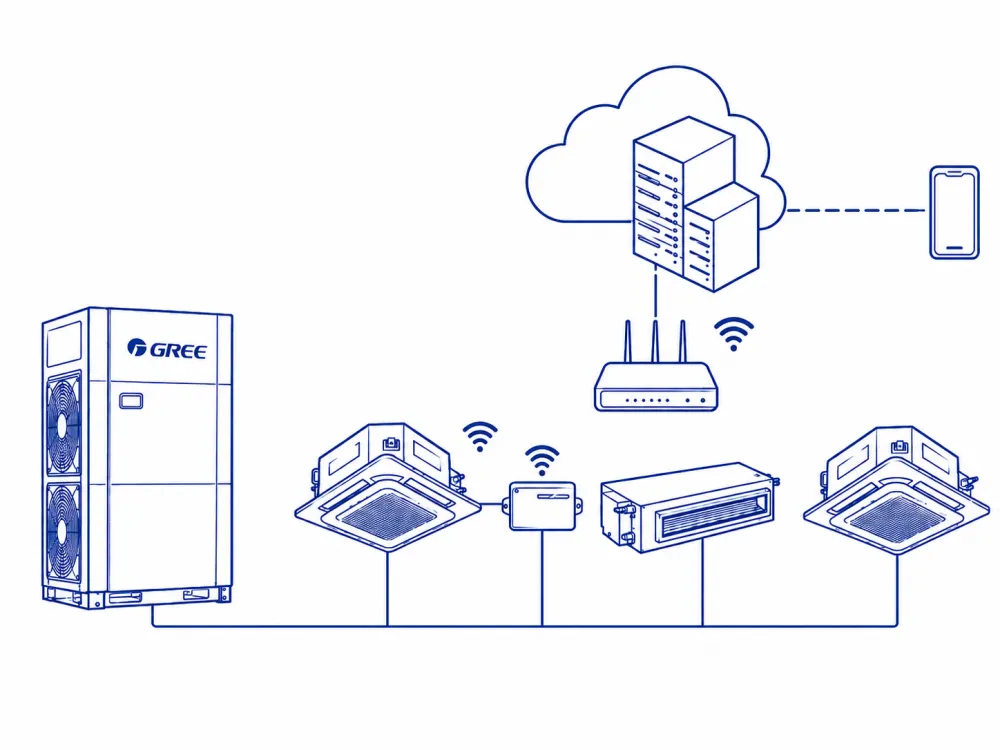

  • Intelligent Building & Cloud Management:

    Connects with centralized touch controllers, G-Cloud WiFi app control, key-card hotel linkage modules, tenant billing software, and BACnet/Modbus building automation gateways
