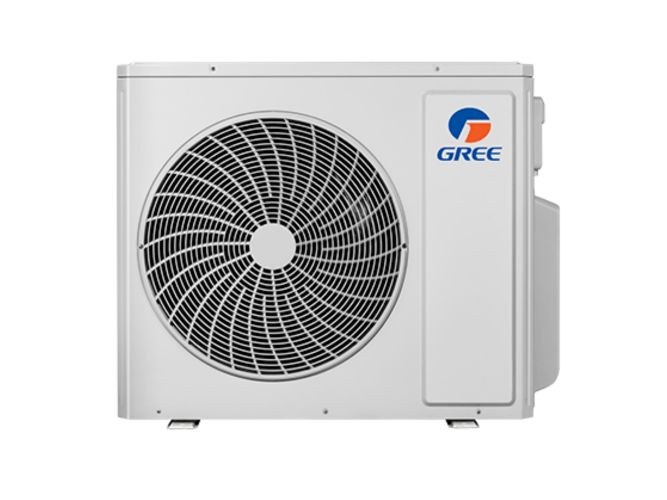

Free Match Outdoor Compressor Unit
Free Match 18k | 21k | 28k | 32k
Free Match is Gree’s outdoor compressor unit that powers up to 6 indoor units, so you can cool multiple rooms from one outdoor unit. With 5 ticks in NEA’s Energy Label, it’s built for energy efficiency, making it a smart fit for HDB flats, condos, landed homes, shophouses and office spaces.
| Model | GWCD-MS18/O | GWCD-MS21/O | GWCD-MS28/O | GWCD-MS32/O | |
| Cooling Capacity Rated (Min-Max) | kW | 5.20 (2.10 ~ 7.60) | 6.25 (2.10 ~ 8.30) | 7.20 (2.20 ~ 10.55) | 8.50 (2.20 ~ 12.30) |
| Btu/h | 17,800 (7,200 ~ 26,000) | 21,400 (7,200 ~ 28,400) | 24,600 (7,500 ~36,000) | 29,000 (7,500 ~ 42,000) |
|
| Power Supply | 1- Phase, 220-240 V, 50Hz | ||||
| Running Current | A | 4.96 | 5.94 | 6.86 | 8.12 |
| Power Input | Kw | 1.07 | 1.28 | 1.48 | 1.75 |
| Dimension (W × H × D) | mm | 964 × 660 × 402 | 964 × 660 × 402 | 964 × 660 × 402 | 1,020× 826 × 427 |
| Net Weight | kg | 46 | 46.5 | 48 | 65 |
| Sound Pressure Level | dB(A) | 54 | 54 | 54 | 60 |
| Connection Pipe Diameter (⌀) | Gas | 3/8" (9.52mm) × 3 | 3/8" (9.52mm) × 4 | 3/8" (9.52mm) × 4 | 3/8" (9.52mm) × 5 |
| Connection Pipe Diameter (⌀) | Liquid | 1/4" (6.35mm) × 3 | 1/4" (6.35mm) × 4 | 1/4" (6.35mm) × 4 | 1/4" (6.35mm) × 5 |
| Connection Pipe Max Distance (Height) | m | 15 | 15 | 15 | 25 |
| Connection Pipe Max Distance (Length) | m | 20 | 20 | 20 | 25 |
| No. of Connectable Indoor Units (System) | Units | 3 | 4 | 4 | 5 |
Free Match 42k | 48k
Free Match is Gree’s outdoor compressor unit that powers up to 6 indoor units, so you can cool multiple rooms from one outdoor unit. With 5 ticks in NEA’s Energy Label, it’s built for energy efficiency, making it a smart fit for HDB flats, condos, landed homes, shophouses and office spaces.
| Model | GWCD-MS42/O | GWCD-MS48/O | |
| Cooling Capacity Rated (Min-Max) | kW | 12.00 (2.60 ~ 17.88) | 14.00 (2.60 ~ 17.88) |
| Btu/h | 41,000 (8,870 ~ 61,000) | 48,000 (8,870 ~ 61,000) |
|
| Power Supply | 1- Phase, 220-240 V, 50Hz | ||
| Running Current | A | 11.2 | 13 |
| Power Input | Kw | 2.4 | 2.8 |
| Dimension (W × H × D) | mm | 987 × 1264 × 412 | 987 × 1264 × 412 |
| Net Weight | kg | 100 | 100 |
| Sound Pressure Level | dB(A) | 58 | 58 |
| Connection Pipe Diameter (⌀) | Gas | 3/8" (9.52mm) × 4 1/2" (12.70mm)× 2 | 3/8" (9.52mm) × 4 1/2" (12.70mm)× 2 |
| Connection Pipe Diameter (⌀) | Liquid | 1/4" (6.35mm) × 6 | 1/4" (6.35mm) × 6 |
| Connection Pipe Max Distance (Height) | m | 25 | 25 |
| Connection Pipe Max Distance (Length) | m | 120 | 120 |
| No. of Connectable Indoor Units (System) | Units | 6 | 6 |
Efficient Cooling
Beat the heat. Faster.
Cleaner Air
Clear air, clear nose.
Quiet Operation
Low as 23dB. Like a whisper
Smart Control
With Gree+ App
Match Them With This Indoor Units

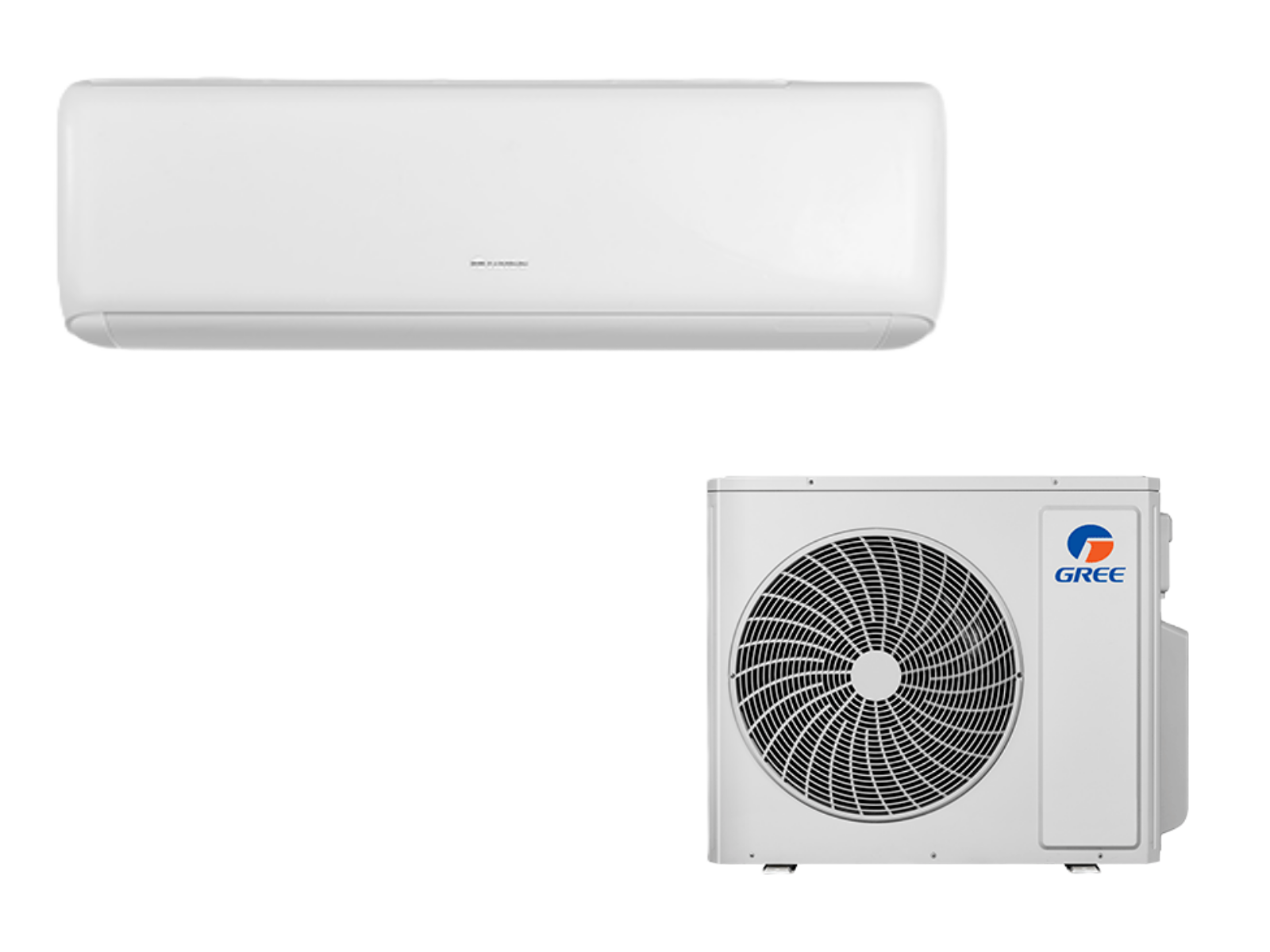

Wall Mount
Wall mount Unit that you typically see in your friends and family house

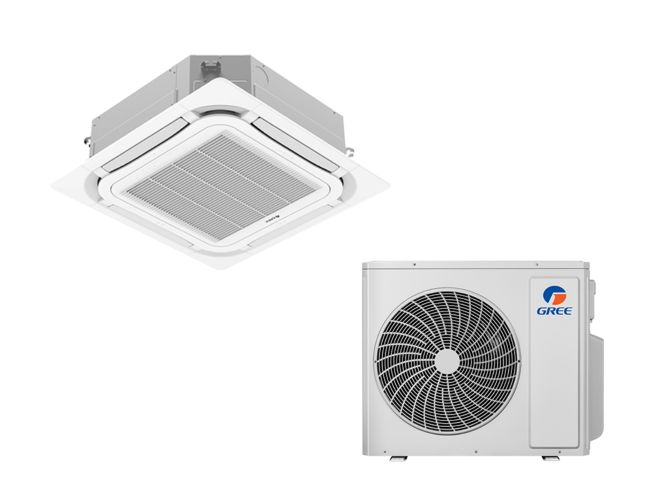

360° Cassette
A more balanced airflow at all direction. Suitable for big spaces

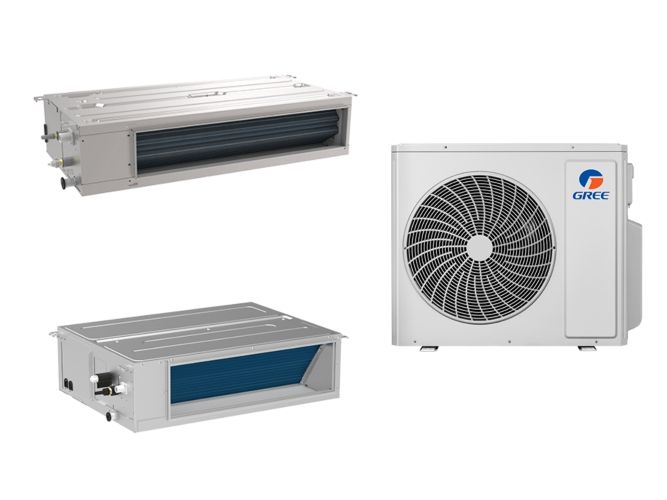

Duct Type
Best use for places that you want to hide your aircon due to space constrain

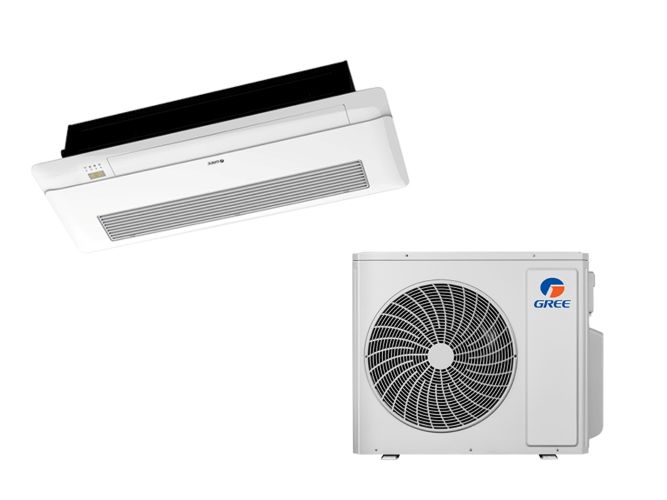

One Way Casette
Wall mount Unit that you typically see in your friends and family house
Features
Up to 6 Indoor Units
4 Major Protection Features
Free Match is Gree’s outdoor compressor unit, built with four major protection features that reduce common breakdowns by up to 80%. Here is what each one does:
- Black Fin Condenser
- Resists corrosion, so the unit lasts longer
- Improves heat exchange for better cooling performance
- Compressor Soundproofing Cotton
- Treated cotton that reduces operating noise, so less of it is heard indoors
- Waterproof and flame retardant, for added peace of mind
- Improved Chassis
- Offers better fire and heat resistance
- PCB Protective Coating
- Protects the circuit board against dust, moisture and corrosion, which helps cut down on maintenance issues

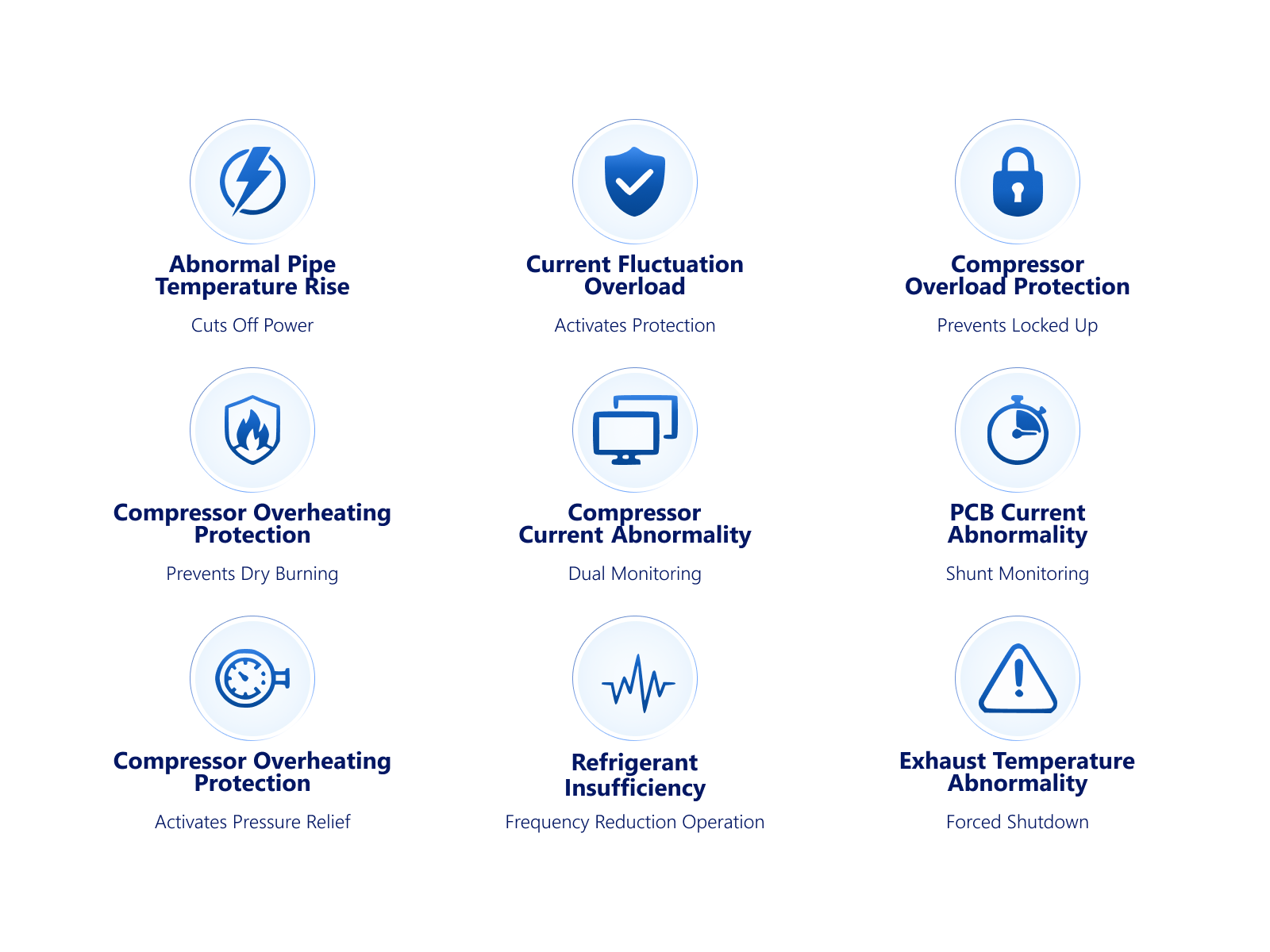

9 Additional Protection Mechanism
Free Match is Gree’s outdoor compressor unit, built with nine additional protection mechanisms that monitor the unit and respond to faults before they become serious. Here is what each one does:
- Pipe Temperature Protection: Cuts off power when pipe temperature rises abnormally.
- Current Overload Protection: Activates protection during current fluctuations.
- Compressor Overload Protection: Prevents the compressor from locking up.
- High Pressure Protection: Releases pressure when system pressure gets too high.
- Exhaust Temperature Protection: Shuts the unit down if exhaust temperature is abnormal.
- Compressor Overheating Protection: Prevents damage from running dry.
- Compressor Current Monitoring: Checks current in two ways.
- PCB Current Monitoring: Checks circuit board current with a shunt.
- Refrigerant Shortage Protection: Lowers compressor frequency to keep the unit running.
Energy Efficient
Free Match is designed to be energy efficient. All units are tested and certified under NEA’s Energy Label regulations, and every Free Match unit has achieved 5 ticks. This supports a more environmentally sustainable lifestyle while helping you save on your electricity bills.
Copper Inside; Comfort Outside
Copper moves heat faster, handles pressure better and lasts longer in humid weather, so you get quicker cooling and fewer worries.
Control Comfort In Your Hands
Control your aircon from your phone, so your room is ready when you arrive. No getting out of bed to switch it on either.
